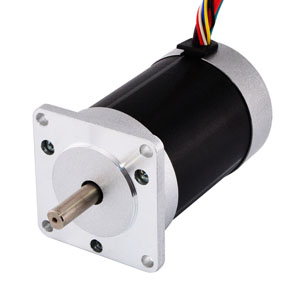

A Brushless DC (BLDC) motor is a Permanent Magnet Synchronous Motor with unique back EMF waveform that allows them to behave similarly to a brushed DC motor. Some confusion can arise from the name, as a brushless DC motor does not directly operate off a DC voltage source. However, the basic principle of operation is similar to a DC motor.
| Model | Phase | Voltage(V) | Power Rating(W) | Rated rotor speed(rpm) | Rated torque(N.M) | weight(kg) | Overall dimensions(mm) |
| LT60BL79-45L223-00 | 3 | 24V | 45W | 2300rpm | 0.2N.M | 1.5kg | 79mm |
| LT63BLW33-40L220-00 | 3 | 24V | 40W | 2000rpm | 0.2N.M | 0.31kg | 33mm |
| LT70BL45-90L230-00 | 3 | 24V | 90W | 3000rpm | 0.3N.M | 0.79kg | 45mm |
| LT70BL99-120L218-00 | 3 | 24V | 120W | 1800rpm | 0.6N.M | 2.2kg | 99mm |
| LT92BL115-150L212-00 | 3 | 24V | 150W | 1200rpm | 1.2N.M | 3.375kg | 115mm |
